Corrugated Sheeting

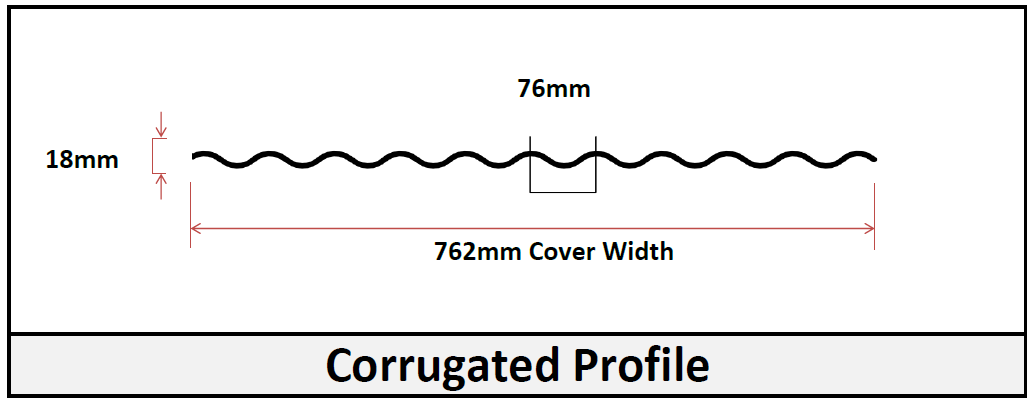

Corrugated is the traditional and familiar S-Rib profile for roofing and cladding applications.  It is the oldest and most commonly used roofing profile because of its easy handling and fixing properties and related strength.  The S-Rib is derived from sinus curve and offers very strong   structural properties.  The 8.5/76 stands for 8.5 corrugations over the width of the shet and 76 refers to the distance in millimetres between two consecutive curves

The Corrugated profile virtually eliminates oil canning and the sheeting can be factory cranked, curved and bullnosed to varius radii depending on customer's requirements.  The overall width of a 8.5 Corrugated sheet is 700 mm and that of a 10.5 Corrugated sheet is 840 mm.
